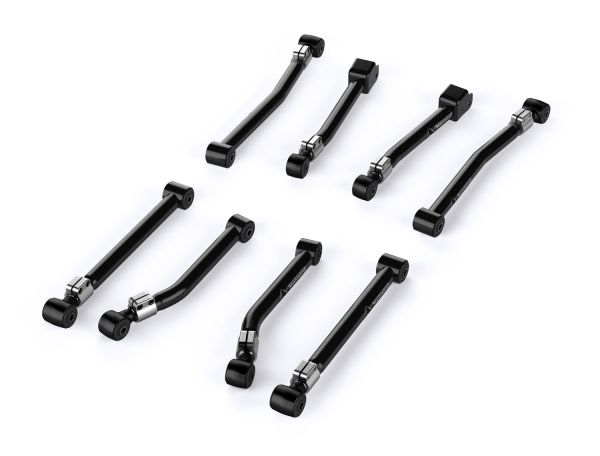

TeraFlex Complete Adjustable Alpine FlexArm Kit For 2007-18 Jeep Wrangler JK 2 Door & Unlimited 4 Door Models (2-4" Lift) 1415610
SKU
TER-1415610
We Price Match
- Manufacturer: TeraFlex
- Part: Suspension - Control Arms
Features high quality, factory style bushings to provide excellent vibration damping rubber bushings at both ends for premium daily driving and ride quality characteristics. The arms offer full range of movement and have excellent articulation and flex off-road.
Special Price $1,631.16 Regular Price $2,038.95
Bulk Item Surcharge: $54.95
TeraFlex 1415610
The TeraFlex JK/JKU 8-Arm Adjustable Alpine Flexarm Kit (2-4” Lift) provides maximum adjustability, dependability, and performance while retaining factory control arm mounting locations on JK Wrangler and JKU Wrangler Unlimited models with 2-4” lifts. Can be added to any existing suspension lift.
Flexarm Specs:
• Tube Diameter & Wall: 1-5/8” x 0.157” (42mm x 4mm)
JK/JKU Alpine Flexarm Kit: Front Upper Adjustable Control Arms (2-4” Lift) - (# 1415520):
• Factory Length = 18-3/4”
• Min. Length = 18-1/2”
• Max. Length = 19-3/4”
• Both Ends = 7/16” (12mm) Bolt
• Thread = 1-1/4”-12 UNF
• Both Bushings = # 611014
JK/JKU: Alpine Flexarm Kit - Front Lower Adjustable Control Arms (2-4” Lift) - (# 1415500):
• Factory Length = 22-5/8”
• Min. Length = 22-3/4”
• Max. Length = 24”
• Both Ends = 9/16” (14mm) Bolt
• Thread = 1-1/4”-12 UNF
• Both Bushings = # 611011
JK/JKU: Alpine Flexarm Kit - Rear Upper Adjustable Control Arms (2-4” Lift) - (# 1415560):
• Factory Length = 17-7/16”
• Min. Length = 17-5/8”
• Max. Length = 18-7/8”
• Both Ends = 9/16” (14mm) Bolt
• Thread = 1-1/4”-12 UNF
• Both Bushings = # 611012
JL/JLU | JK/JKU: Alpine Flexarm Kit - Rear Lower Adjustable Control Arms (0-4” | 2-4” Lift) - (# 1415540)
• Factory Length = 19-3/4”
• Min. Length = 19-13/16”
• Max. Length = 21-1/16”
• Both Ends = 9/16” (14mm) Bolt
• Thread = 1-1/4”-12 UNF
• Both Bushings = # 611011
The TeraFlex JK/JKU 8-Arm Adjustable Alpine Flexarm Kit (2-4” Lift) provides maximum adjustability, dependability, and performance while retaining factory control arm mounting locations on JK Wrangler and JKU Wrangler Unlimited models with 2-4” lifts. Can be added to any existing suspension lift.
Flexarm Specs:
• Tube Diameter & Wall: 1-5/8” x 0.157” (42mm x 4mm)
JK/JKU Alpine Flexarm Kit: Front Upper Adjustable Control Arms (2-4” Lift) - (# 1415520):
• Factory Length = 18-3/4”
• Min. Length = 18-1/2”
• Max. Length = 19-3/4”
• Both Ends = 7/16” (12mm) Bolt
• Thread = 1-1/4”-12 UNF
• Both Bushings = # 611014
JK/JKU: Alpine Flexarm Kit - Front Lower Adjustable Control Arms (2-4” Lift) - (# 1415500):
• Factory Length = 22-5/8”
• Min. Length = 22-3/4”
• Max. Length = 24”
• Both Ends = 9/16” (14mm) Bolt
• Thread = 1-1/4”-12 UNF
• Both Bushings = # 611011
JK/JKU: Alpine Flexarm Kit - Rear Upper Adjustable Control Arms (2-4” Lift) - (# 1415560):
• Factory Length = 17-7/16”
• Min. Length = 17-5/8”
• Max. Length = 18-7/8”
• Both Ends = 9/16” (14mm) Bolt
• Thread = 1-1/4”-12 UNF
• Both Bushings = # 611012
JL/JLU | JK/JKU: Alpine Flexarm Kit - Rear Lower Adjustable Control Arms (0-4” | 2-4” Lift) - (# 1415540)
• Factory Length = 19-3/4”
• Min. Length = 19-13/16”
• Max. Length = 21-1/16”
• Both Ends = 9/16” (14mm) Bolt
• Thread = 1-1/4”-12 UNF
• Both Bushings = # 611011
Fitment:
Fits 2007-18 Jeep Wrangler (JK)Fits 2007-18 Jeep Wrangler Unlimited (JK)
Features:
Durable 1-5/8” x 0.157” (42mm x 4mm) wall DOM (Drawn Over Mandrel) tube provides maximum strengthFully-adjustable Alpine Flexarm control arms optimize pinion & caster angles, & tune anti-squat geometry for proper suspension alignment
Re-centers axles in the wheel well for proper suspension movement or can be used to increase wheelbase
Full-range of movement will not restrict articulation or flex off-road
High-quality factory style bushings provide excellent noise, vibration, & harshness (NVH) damping & ride quality characteristics w/ zero maintenance
Zero maintenance forged threaded joints for smooth quiet flex
Premium black e-dipped coating provides superior durability & corrosion resistance on tube & forged rod end housing
Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
Warranty:
Limited Lifetime Warranty
Parts Included:
(2) Front Upper Adjustable Control Arms (# 1415520)(2) Front Lower Adjustable Control Arms (# 1415500)
(2) Rear Upper Adjustable Control Arms (# 1415560)
(2) Rear Lower Adjustable Control Arms (# 1415540)
