Viair 10008

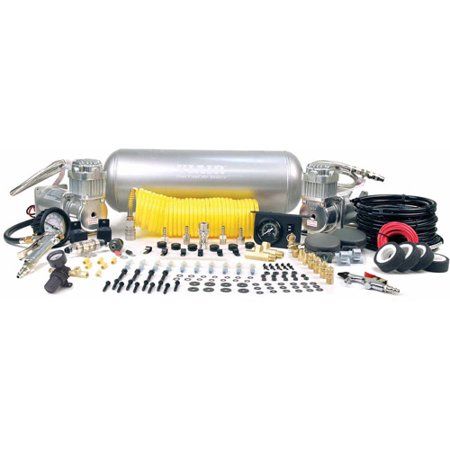

VIAIR?s Super Duty Onboard Air System is a pre-packaged compressed air solution that provides two fast 325C, 33% duty cycle compressors, a 2.0 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more.

Please Note: Use thread sealant for proper installation.
Teflon tape is not recommended.
Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs.

Included Parts:
- 2.0 Gallon VIAIR Air Tank
- (2) 325C VIAIR Compressors
- 30ft. Coil Hose with Quick Connects
- Tire Inflation Gun with 200 PSI Gauge
- Dash Panel Gauge with ON/OFF Switch
- 0-220 PSI Pressure Regulator
- Blow Gun Air Tool
- Sealed Pressure Switch (110 PSI on, 145 PSI off)
- (2) 40-amp Relays
- (2) T-Fittings (1/4” (M) x 1/4" (F) x 1/8” (F))
- 1/4” Quick Connect Stud (F)
- 1/4” Quick Connect Coupler (F)
- 1/4” 175 PSI Safety Valve
- 1/4” Drain Cock
- (2) 1/8” BSP to 1/4” NPT
- (4) 1/4” Compression Fittings
- 20ft. 12-Gauge Wire with Inline Fuse Holder
- 4” Strip of Continuous Grommet Material
- Accessory Airline
- Electrical Connections

Specifications
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 40 Amps
- Ingress Protection Rating: IP67
