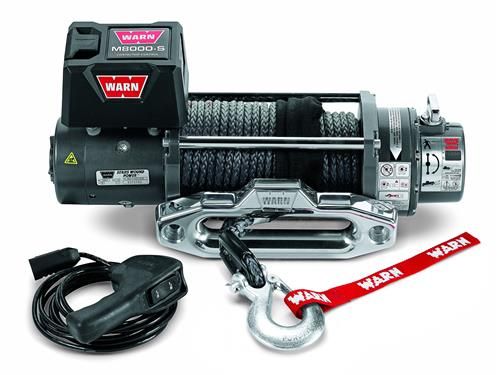

WARN M8000-S Self-Recovery Winch (12V DC) 100' Synthetic Rope and Hawse Fairlead 87800
SKU
WAR-87800
We Price Match
- Rated Line Pull: 8000 lbs.
- Voltage: 12V
- Motor: 4.8 HP
- Remote Control: Remote switch, 12 ft. lead
- Gear Ratio: 216.1
- Size: 21.04 in. x 6.3 in. x 7.6 in.
- Weight: 80 lbs.
- Synthetic 100 ft. of 3/8 in.
- Fairlead Hawse
- Type of Winch: Electric
Special Price $1,640.76 Regular Price $2,050.95
Bulk Item Surcharge: $56.95
WARN 87800
Compact. Tough. An outstanding value for trucks, sport utility vehicles and Jeeps. The M8000, with its 4.8-hp Series Wound motor and 3-stage planetary geartrain, packs 8,000 lbs. of pulling power to get the job done. Available with 100' Spydura Synthetic rope and hawse fairlead. Pulls a fast 8 ft. per minute at rated load.Wireless Remote Control System can be added which is also available separately.
M8000-M8000-s SPECS/PART NUMBERS
Part Number: 26502 (wire rope, 12V), 88502 (wire rope, 12V, CE, International sales only), 265032 (wire rope, 24V), 87800 (synthetic rope, 12V, currently not CE compliant
Rated Line Pull: 8000 lbs. (3630 kgs.) single-line
Motor: 12V 4.8 hp, Series Wound??
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 216:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 55 lbs. (25 kgs.)
Rope: Spydura?? synthetic -- 100', 3/8" diam.
Fairlead: Full radius polished aluminum hawse
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 39625
Includes:
100', 3/8" Spydura?? Synthetic Rope with Hook and Protective Sleeve
12V 4.8 hp Series Wound Motor
Remote switch, 12' (3.7m) lead
Spring- loaded control switches
Automatic Direct Drive Cone Brake
3-Stage Planetary with a 216:1 ratio
Sliding Ring Gear Clutch for freespooling
Contactor Control Box
Color-coded 2 gauge, 72" cables and connectors.
Compact. Tough. An outstanding value for trucks, sport utility vehicles and Jeeps. The M8000, with its 4.8-hp Series Wound motor and 3-stage planetary geartrain, packs 8,000 lbs. of pulling power to get the job done. Available with 100' Spydura Synthetic rope and hawse fairlead. Pulls a fast 8 ft. per minute at rated load.Wireless Remote Control System can be added which is also available separately.
M8000-M8000-s SPECS/PART NUMBERS
Part Number: 26502 (wire rope, 12V), 88502 (wire rope, 12V, CE, International sales only), 265032 (wire rope, 24V), 87800 (synthetic rope, 12V, currently not CE compliant
Rated Line Pull: 8000 lbs. (3630 kgs.) single-line
Motor: 12V 4.8 hp, Series Wound??
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 216:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 55 lbs. (25 kgs.)
Rope: Spydura?? synthetic -- 100', 3/8" diam.
Fairlead: Full radius polished aluminum hawse
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 39625
Includes:
100', 3/8" Spydura?? Synthetic Rope with Hook and Protective Sleeve
12V 4.8 hp Series Wound Motor
Remote switch, 12' (3.7m) lead
Spring- loaded control switches
Automatic Direct Drive Cone Brake
3-Stage Planetary with a 216:1 ratio
Sliding Ring Gear Clutch for freespooling
Contactor Control Box
Color-coded 2 gauge, 72" cables and connectors.
| Searchable Sku | 87800 |
|---|---|
| Manufacturer | WARN |
