BDS Lift Kit 4.5in w/ NX2 Shocks for 12-18 Jeep Wrangler JKU 1405H
SKU
BDS-1405H
We Price Match
- Manufacturer: BDS Suspension
- Part: Lift Kits - Suspension 3.5-4.5 Inch
This system comes complete with front and rear fixed length lower control arms and rear upper adjustable control arms to properly control the front and rear axle positions
Special Price $2,252.46 Regular Price $2,649.95
Bulk Item Surcharge: $86.95
BDS 1405H
This system comes complete with front and rear fixed length lower control arms and rear upper adjustable control arms to properly control the front and rear axle positions. BDS control arms come standard with OE grade rubber bushings. If you would like to upgrade, BDS offers adjustable arms with urethane ends or adjustable arms w/ flex joints to fit your needs.
To improve the steering and handling geometry, BDS includes a front track bar relocation bracket and a dropped pitman arm. Fixed swaybar links are included for Rubicon models with the factory disconnect system, for non-Rubicon models choose between BDS Ultimate Sway Bar Disconnects or JKS Quicker Disconnects. Specific for 2012-14, BDS exhaust extensions are included to maintain front driveshaft clearance at full droop.
In the rear, an axle mounted track bar relocation bracket is included that has a built-in support gusset that ties into the bump stop pad. JK's are known for broken welds on the factory track bar mount when wheeled hard, so BDS solved the problem with this added support. The kit comes standard with NX² series custom valved shock absorbers for a smooth ride.
BDS carries a large selection of accessories for Jeep JK's so check out what is available for this 4" lift by customizing your system.
Important Fitment Notes:
Front driveshaft is maxed out at full droop
Driveshaft boot may contact transmission pan
Exhaust modification may be required
Tires up to 37" x 12.50" w/16 x 8 and 4-1/2" back spacing
Trimming may be required
This system comes complete with front and rear fixed length lower control arms and rear upper adjustable control arms to properly control the front and rear axle positions. BDS control arms come standard with OE grade rubber bushings. If you would like to upgrade, BDS offers adjustable arms with urethane ends or adjustable arms w/ flex joints to fit your needs.
To improve the steering and handling geometry, BDS includes a front track bar relocation bracket and a dropped pitman arm. Fixed swaybar links are included for Rubicon models with the factory disconnect system, for non-Rubicon models choose between BDS Ultimate Sway Bar Disconnects or JKS Quicker Disconnects. Specific for 2012-14, BDS exhaust extensions are included to maintain front driveshaft clearance at full droop.
In the rear, an axle mounted track bar relocation bracket is included that has a built-in support gusset that ties into the bump stop pad. JK's are known for broken welds on the factory track bar mount when wheeled hard, so BDS solved the problem with this added support. The kit comes standard with NX² series custom valved shock absorbers for a smooth ride.
BDS carries a large selection of accessories for Jeep JK's so check out what is available for this 4" lift by customizing your system.
Important Fitment Notes:
Front driveshaft is maxed out at full droop
Driveshaft boot may contact transmission pan
Exhaust modification may be required
Tires up to 37" x 12.50" w/16 x 8 and 4-1/2" back spacing
Trimming may be required
Fitment:
2012-18 Jeep Wrangler Unlimited (JKU)
Features:
This kit comes with 4in Pro-Ride Coil Springs capable of full coil bind and 3" bump stop extensions to control the compression travel. To handle the added wheel travel, brake line relocation brackets are included or BDS stainless steel lines are available. This system comes complete with front and rear fixed length lower control arms and rear upper adjustable control arms to properly control the front and rear axle positions. BDS control arms come standard with OE grade rubber bushings. If you would like to upgrade, BDS offers adjustable arms with urtethane ends or adjustable arms w/ flex joints to fit your needs. To improve the steering and handling geometry, BDS includes a front track bar relocation bracket and a dropped pitman arm. Fixed swaybar links are included for Rubicon models with the factory disconnect system, for non-Rubicon models choose between BDS Ultimate Sway Bar Disconnects or JKS Quicker Disconnects. Specific for 2012-14, BDS exhaust extensions are included to maintatin front driveshaft clearance at full droop. In the rear, an axle mounted track bar relocation bracket is included that has a built in support gusset that ties into the bump stop pad. JK's are known for broken welds on the factory track bar mount when wheeled hard, so BDS solved the problem with this added support. The kit comes standard with NX2 series custom valved shock absorbers for a smooth ride.
Warranty:
No-Fine-Print

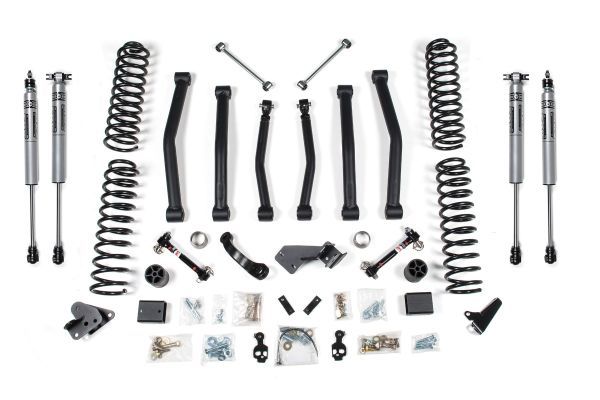

Parts Included:
BDS014454: Jk 4.5 In Box Kit X1BDS034411: Jk 4.5 In Front Coil Kit X1
BDS034419: Jk 4.5 In Rear Coil Kit X1
BDS124314: 12-18 Jeep JK Exhaust Extension Kit X1
BDS124331: JK Front Fixed LCA Kit X1
BDS124339: JK Rear Fixed LCA Kit X1
BDS85700: BDS NX2 Shock Absorber X2
BDS85959: NX2 Shock Absorber X2
| Searchable Sku | 1405H |
|---|---|
| Manufacturer | BDS Suspension |
