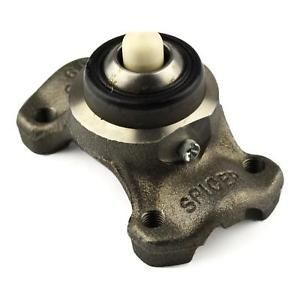

Dana Spicer Front Driveshaft Constant Velocity Socket Yoke 1310 (Greaseable) For 1975-2002 Jeep Various Models 211355X
SKU
DSP-211355X
We Price Match
- Manufacturer: Dana Spicer
- Part: Driveshaft - Misc
FRONT DRIVESHAFT CONSTANT VELICITY YOKE 1310 U-Joints Greaseable
IF your driveshaft was originally designed for the Greaseable CV Centering yoke then you MUST always use the Greaseable version when replacing the centering yoke. The NON greaseable centering yoke will bind up on the
CV Stud Yoke and you will not be able to re-assemble it.
IF your driveshaft was originally designed for the NON Greaseable CV centering yoke then you have two choices...one is to use the Greaseable and one is to use the NON Greaseable. The choice is yours.
If you choose to go greaseable then you do not need the rubber dust boot. It will only get in the way and make it impossible to lube it correctly.
IF your driveshaft was originally designed for the Greaseable CV Centering yoke then you MUST always use the Greaseable version when replacing the centering yoke. The NON greaseable centering yoke will bind up on the
CV Stud Yoke and you will not be able to re-assemble it.
IF your driveshaft was originally designed for the NON Greaseable CV centering yoke then you have two choices...one is to use the Greaseable and one is to use the NON Greaseable. The choice is yours.
If you choose to go greaseable then you do not need the rubber dust boot. It will only get in the way and make it impossible to lube it correctly.
Special Price $100.26 Regular Price $117.95
Dana Spicer DS-211355X
FRONT DRIVESHAFT CONSTANT VELICITY YOKE 1310 U-Joints Greaseable
Fits:
84-94 Jeep Cherokee (XJ)
75-83 Jeep CJ-5
76-86 Jeep CJ-7
81-85 Jeep CJ-8
93-94 Jeep Grand Cherokee (ZJ)
75-86 Grand Wagoneer
97-02 Jeep Wrangler (TJ)
Use on any Jeep front/rear 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint
Includes (1) Dana Spicer 211355X Centering Yoke....GREASEABLE
Includes (4) Grade 8 Bolts
Includes (1) Spring
Fits Jeep Models with OEM or aftermarket 1310 series CV Driveshaft Front/Rear
DOES NOT fit 2003 to 2006 RUBICON Models with 1330 series front driveshaft
DOES NOT fit aftermarket 1310 CV Driveshaft with FLAT FLANGE at TRANSFER CASE
DIMENSIONS
Fits 1310 U-Joint
(3.219 inches) 3-7/32 inches between locating tabs on centering yoke
(1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
Bolt Holes are 5/16 - 24 fine thread
Bolt hole spacing 1.500 inches across u-joint cap
Bolt hole spacing 2.343 inches side to side
Fits .500 inch stud diameter
Alternate Part # 02-83-219; 8126796; J8126796; 211355x
FRONT DRIVESHAFT CONSTANT VELICITY YOKE 1310 U-Joints Greaseable
Fits:
84-94 Jeep Cherokee (XJ)
75-83 Jeep CJ-5
76-86 Jeep CJ-7
81-85 Jeep CJ-8
93-94 Jeep Grand Cherokee (ZJ)
75-86 Grand Wagoneer
97-02 Jeep Wrangler (TJ)
Use on any Jeep front/rear 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint
Includes (1) Dana Spicer 211355X Centering Yoke....GREASEABLE
Includes (4) Grade 8 Bolts
Includes (1) Spring
Fits Jeep Models with OEM or aftermarket 1310 series CV Driveshaft Front/Rear
DOES NOT fit 2003 to 2006 RUBICON Models with 1330 series front driveshaft
DOES NOT fit aftermarket 1310 CV Driveshaft with FLAT FLANGE at TRANSFER CASE
DIMENSIONS
Fits 1310 U-Joint
(3.219 inches) 3-7/32 inches between locating tabs on centering yoke
(1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
Bolt Holes are 5/16 - 24 fine thread
Bolt hole spacing 1.500 inches across u-joint cap
Bolt hole spacing 2.343 inches side to side
Fits .500 inch stud diameter
Alternate Part # 02-83-219; 8126796; J8126796; 211355x
