EVO Manufacturing Rear Double ThrowDown Suspension System with King Coilovers & Bypass Shocks for 07-18 Jeep Wrangler JK, JKU EVO-1008
SKU
EVO-EVO-1008
We Price Match
- Manufacturer: EVO Manufacturing
- Part: Lift Kits - Suspension 2-3 Inch Lift Kits - Suspension 3.5-4.5 Inch Suspension - Coil Overs
The rear EVO MFG Double ThrowDown System is engineered for the Jeep owners who like to go fast.
Special Price $10,254.36 Regular Price $12,063.95
Bulk Item Surcharge: $105.95
EVO MFG EVO-1008
The rear EVO MFG Double ThrowDown System is engineered for the Jeep owners who like to go fast. This system utilizes a coilover just like EVO MFG's EVOlever and has all the same added benefits, as well as an additional bypass shock each corner. With the addition of a bypass shock you have full external adjustability of the damping and "zones" within the shock stroke that allow the system to be position sensitive. This system gives you 14" of positions sensitive damping without the need for cutting holes in the body of your Jeep. EVO MFG is now shipping the rear EVOlever and Double ThrowDown sub frames with the bushing and pivot points preassembled and lubricated .This simple process will help ease the install and insure proper set up of the pivot points. Now the installer will be able to install this product faster which means you can enjoy all these great benefits of the EVOlever sooner.
Proudly Made 100% In USA.
The rear EVO MFG Double ThrowDown System is engineered for the Jeep owners who like to go fast. This system utilizes a coilover just like EVO MFG's EVOlever and has all the same added benefits, as well as an additional bypass shock each corner. With the addition of a bypass shock you have full external adjustability of the damping and "zones" within the shock stroke that allow the system to be position sensitive. This system gives you 14" of positions sensitive damping without the need for cutting holes in the body of your Jeep. EVO MFG is now shipping the rear EVOlever and Double ThrowDown sub frames with the bushing and pivot points preassembled and lubricated .This simple process will help ease the install and insure proper set up of the pivot points. Now the installer will be able to install this product faster which means you can enjoy all these great benefits of the EVOlever sooner.
Proudly Made 100% In USA.
Fitment:
07-18 Jeep Wrangler JK07-18 Jeep Wrangler JK Unlimited
Features:
Allows the uses of long travel coilover and external bypass shocks in the rear of your JK without the need for doing any major cutting.Absolutely no cutting of the body.
Offers up to 14 of vertical wheel travel.
Optimizes Short Arm and Long Arm suspension system, from every manufacturer without modification. (Rancho Long Arm/Rock Krawler needs modification)
Offers the maximum amount of ground clearance with 14" travel. All key components fully protected and above axle at all times.
Adjustable ride height.
Four Ply limit strap included
3/4"chromoly heim joints.
Stainless steel misalignments.
Grade 8 hardware
Allows for use of 35 up to 42 tires (Larger than 37", Body Trimming required)
Features: Coil Over
Shocks Included: With Shocks
Max Tire Size: 42
Lift Height Range: 3 - 4.5 inch
Included Parts: Coil Springs, Control Arm Brackets, Extended Brake Lines, Extended Sway Bars, Hardware
Warranty:
Limited Lifetime Warranty.

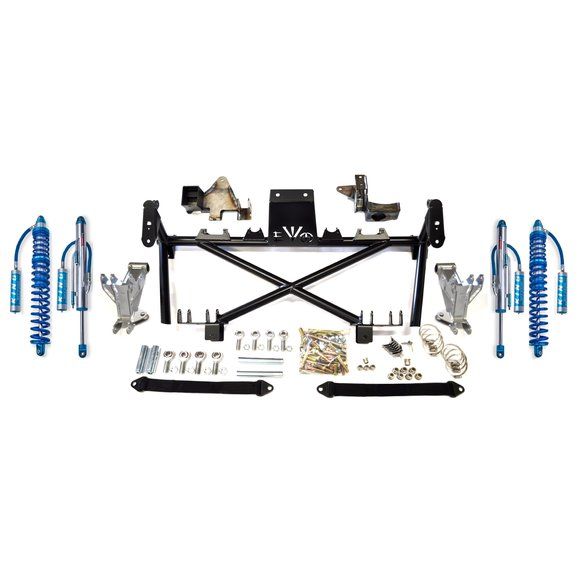

Parts Included:
1 Driver Side Double ThrowDown Arm1 Passenger Side Double ThrowDown Arm
1 DTD EVOlever Subframe
2 King Coilover Shocks
2 King Bypass Shocks
1 Canti Track Bracket
1 Driver Side Heim Mount Bracket
1 EVOlever Frame Side Trackbar Relocation Bracket
2 Cantilever Arm End Link Tubes
2 3/4" Male RH Heim Joints
2 3/4" Male LH Heim Joints
2 3/4" Right Hand Hex Jam Nuts
2 3/4" Left Hand Hex Jam Nuts
8 3/4" Misalignment Spacers
8 Hose Clamps
8 Tabs
2 20" Limit Straps
2 Cross Braces in Clear Zinc
4 5/8" Misalignment Spacers
4 5/8" Male RH Heim Joints
4 5/8" Right Hand Hex Jam Nuts
4 Cantilever Bushings
Installation Hardware
Important Note: Exhaust modifications required.
