Viair 200 PSI 2 Gal. Tank Fast-Fill A.S.K. 20007
SKU
VA-20007
We Price Match
- Manufacturer: Viair
- Part: Air Compressors

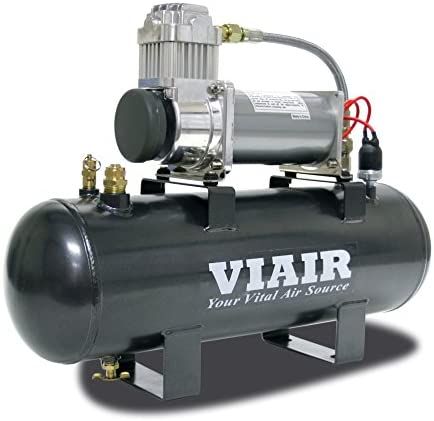

Fast-Fill 200 PSI Air Source Kits come with a powerful, low amp-draw 380C VIAIR compressor mounted on a 200 PSI-rated 2.0 gallon air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry’s leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2-inch port compression fitting for 3/8" (I.D.) air line pre-installed! To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated fuse is recommended for use with this unit.
Included Parts:
- 380C Pewter Air Compressor
- 2.0 Gallon Air Tank
- Pressure Switch (165 PSI On / 200 PSI Off)
- Safety Valve (250 PSI)
- Drain Cock
- Leader Hose with Check Valve
Specifications
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- Dimensions: 19"L x 5.9"W x 14.2"H
- Net Weight: 21.05 lbs.
Included Parts:
- 380C Pewter Air Compressor
- 2.0 Gallon Air Tank
- Pressure Switch (165 PSI On / 200 PSI Off)
- Safety Valve (250 PSI)
- Drain Cock
- Leader Hose with Check Valve
Specifications
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- Dimensions: 19"L x 5.9"W x 14.2"H
- Net Weight: 21.05 lbs.
Special Price $440.76 Regular Price $550.95
Viair 20007
Fast-Fill 200 PSI Air Source Kits come with a powerful, low amp-draw 380C VIAIR compressor mounted on a 200 PSI-rated 2.0 gallon air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry’s leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2-inch port compression fitting for 3/8" (I.D.) air line pre-installed! To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated fuse is recommended for use with this unit.
Included Parts:
- 380C Pewter Air Compressor
- 2.0 Gallon Air Tank
- Pressure Switch (165 PSI On / 200 PSI Off)
- Safety Valve (250 PSI)
- Drain Cock
- Leader Hose with Check Valve
Specifications
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- Dimensions: 19"L x 5.9"W x 14.2"H
- Net Weight: 21.05 lbs.
Fast-Fill 200 PSI Air Source Kits come with a powerful, low amp-draw 380C VIAIR compressor mounted on a 200 PSI-rated 2.0 gallon air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry’s leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2-inch port compression fitting for 3/8" (I.D.) air line pre-installed! To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated fuse is recommended for use with this unit.
Included Parts:
- 380C Pewter Air Compressor
- 2.0 Gallon Air Tank
- Pressure Switch (165 PSI On / 200 PSI Off)
- Safety Valve (250 PSI)
- Drain Cock
- Leader Hose with Check Valve
Specifications
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- Dimensions: 19"L x 5.9"W x 14.2"H
- Net Weight: 21.05 lbs.
| Searchable Sku | 20007 |
|---|---|
| Manufacturer | Viair |
