Viair 10007

VIAIRs Constant Duty Onboard Air System is a pre-packaged compressed air solution that provides a 100% duty cycle 450C compressor, 2.5 gallon air tank, and all components needed to
install a working system capable of inflating tires.

Please Note: Use thread sealant for proper installation.
Teflon tape is not recommended.
Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs.

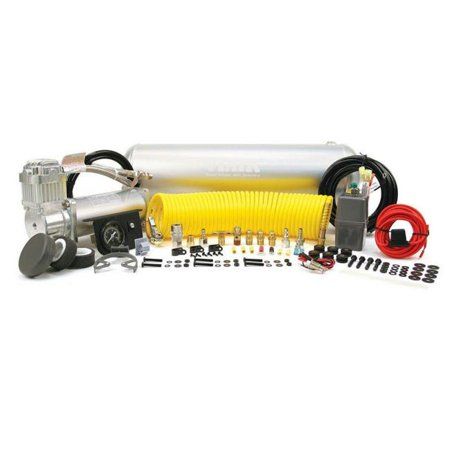

Included Parts:
- 2.5 Gallon VIAIR Air Tank
- 450C VIAIR Compressor
- 35ft. Coil Hose with Tire Chuck
- Dash Panel Gauge with ON/OFF Switch
- Pressure Switch with Relay (110 PSI on, 145 PSI off)
- Reducer: 1/8” (F) to 1/4” (M)
- 1/4” Quick Connect Stud (F)
- 1/4” Quick Connect Coupler (F)
- 1/4” 175 PSI Safety Valve
- 1/4” Drain Cock
- (3) 1/4” Compression Fittings
- 20ft. 12-Gauge Wire with Inline Fuse Holder
- 4” Strip of Continuous Grommet Material
- Accessory Airline
- Electrical Connections

Specifications
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
