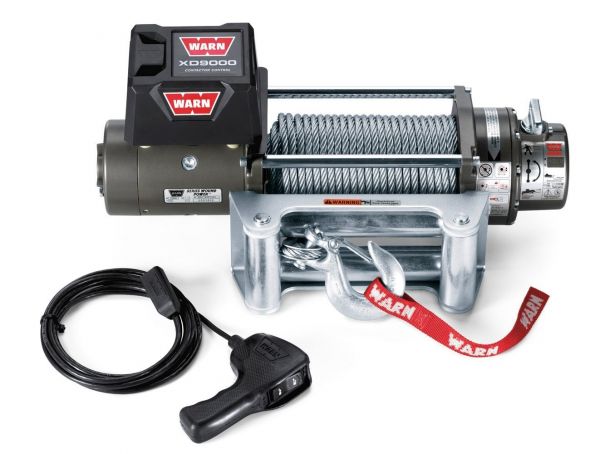

WARN XD9000 Winch With 100' Wire Rope & Roller Fairlead 28500
SKU
WAR-28500
We Price Match
- Rated Line Pull: 9000 lbs.
- Voltage: 12V
- Motor: 4.6 HP
- Remote Control: Remote switch, 12 ft. lead
- Gear Ratio: 156.1
- Size: 21.8 in. x 6.3 in. x 7.6 in.
- Weight: 84.5 lbs.
- Wire Rope: 100 ft. of 5/16
- Fairlead: Roller
- Type of Winch: Electric
Special Price $2,073.56 Regular Price $2,591.95
Bulk Item Surcharge: $85.95
WARN 28500
A long-time best seller, the XD9000's compact body and separate control pack lets it work effectively in very tight spaces. It uses the 4.6 hp Series Wound?? motor and three-stage planetary gearing offered on most of our winches, so torque and line speed are outstanding. A quiet, double-durable winch, pure and simple.
Wireless Remote Control System can be added which is also available separately.
Part Numbers: PN 28500 CE (12V DC), PN 265012 CE (24V DC)
Rated Line Pull: 9000 lbs. (4080 kgs.) single-line
Motor: 12V 4.6 hp, 24V 2.5 hp Series Wound??
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 78 lbs. (35 kgs.)
Wire Rope: 100', 5/16"diameter (30m, 8mm diameter)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Powder Coat
Nuts/Bolts: PN 39625
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.
A long-time best seller, the XD9000's compact body and separate control pack lets it work effectively in very tight spaces. It uses the 4.6 hp Series Wound?? motor and three-stage planetary gearing offered on most of our winches, so torque and line speed are outstanding. A quiet, double-durable winch, pure and simple.
Wireless Remote Control System can be added which is also available separately.
Part Numbers: PN 28500 CE (12V DC), PN 265012 CE (24V DC)
Rated Line Pull: 9000 lbs. (4080 kgs.) single-line
Motor: 12V 4.6 hp, 24V 2.5 hp Series Wound??
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 78 lbs. (35 kgs.)
Wire Rope: 100', 5/16"diameter (30m, 8mm diameter)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Powder Coat
Nuts/Bolts: PN 39625
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.
