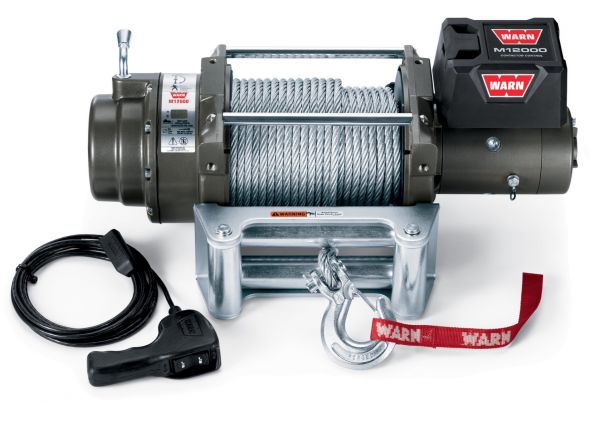

WARN M12000 Self-Recovery Winch (12V DC) 125' Wire Rope and Roller Fairlead 17801
SKU
WAR-17801
We Price Match
- Rated Line Pull: = 12000 lbs.
- Voltage: = 12V
- Motor: = 4.6 HP
- Remote Control: = Remote switch, 12 ft. lead
- Gear Ratio: = 261.1
- Size: = 24.37 in. x 8.45 in. x 11 in.
- Weight: = 136 lbs.
- Wire Rope = 125 ft. of 3/8
- Fairlead = Roller
- Type of Winch: = Electric
Special Price $2,851.16 Regular Price $3,563.95
Bulk Item Surcharge: $142.95
WARN 17801
For heavy-duty winching needs, this winch is a champion workhorse. Big torque, power and quick no-load retrieval speed is 30 feet per minute. Its design is low profile, so it'll fit where you want. And it's powered by the 4.6-hp Series Wound?? motor and our proven three-stage planetary gear train. With 125 ft. of 3/8" wire rope, the Warn M12000 can solve most any pulling problem.
Wireless Remote Control System can be added which is also available separately.
Part Numbers: PN 17801 CE (12V DC)
Rated Line Pull: 12000 lbs. (5440 kgs.) single-line
Motor: 12V 4.6 hp Series Wound??
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 261:1
Lubrication: Aeroshell # 17
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 3.5"/8.2" (9cm/21cm)
Weight: 136lbs. (62kgs.)
Wire Rope: 125', 3/8"diameter (38m, 9.5mm diam)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 39572
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.
Winch Dimensions: 24.37" L. x 8.45" D. x 11" H. (6.19mm L. x 214.63mm D. x 279mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
Includes:
125', 3/8"diameter (38m, 9.5mm diam)
12V 4.6 hp, 24V 2.5 hp Series Wound Motor
Remote switch, 12' (3.7m) lead
Direct Drive Cone Break
Spring- loaded control switches
Contactor Control Pack
3-Stage Planetary Gears with a 216.1 Ratio
Sliding Ring Gear clutch for free spooling
Weather-shielded solenoids. Color-coded cables and connectors.
Roller Fairlead
For heavy-duty winching needs, this winch is a champion workhorse. Big torque, power and quick no-load retrieval speed is 30 feet per minute. Its design is low profile, so it'll fit where you want. And it's powered by the 4.6-hp Series Wound?? motor and our proven three-stage planetary gear train. With 125 ft. of 3/8" wire rope, the Warn M12000 can solve most any pulling problem.
Wireless Remote Control System can be added which is also available separately.
Part Numbers: PN 17801 CE (12V DC)
Rated Line Pull: 12000 lbs. (5440 kgs.) single-line
Motor: 12V 4.6 hp Series Wound??
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 261:1
Lubrication: Aeroshell # 17
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 3.5"/8.2" (9cm/21cm)
Weight: 136lbs. (62kgs.)
Wire Rope: 125', 3/8"diameter (38m, 9.5mm diam)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 39572
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.
Winch Dimensions: 24.37" L. x 8.45" D. x 11" H. (6.19mm L. x 214.63mm D. x 279mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
Includes:
125', 3/8"diameter (38m, 9.5mm diam)
12V 4.6 hp, 24V 2.5 hp Series Wound Motor
Remote switch, 12' (3.7m) lead
Direct Drive Cone Break
Spring- loaded control switches
Contactor Control Pack
3-Stage Planetary Gears with a 216.1 Ratio
Sliding Ring Gear clutch for free spooling
Weather-shielded solenoids. Color-coded cables and connectors.
Roller Fairlead
